GRP Pultruded Grating.
Innovative. Tough. Proven.
Overview
Resin systems
Surfaces
Colours
Sizes
Overview
Overview

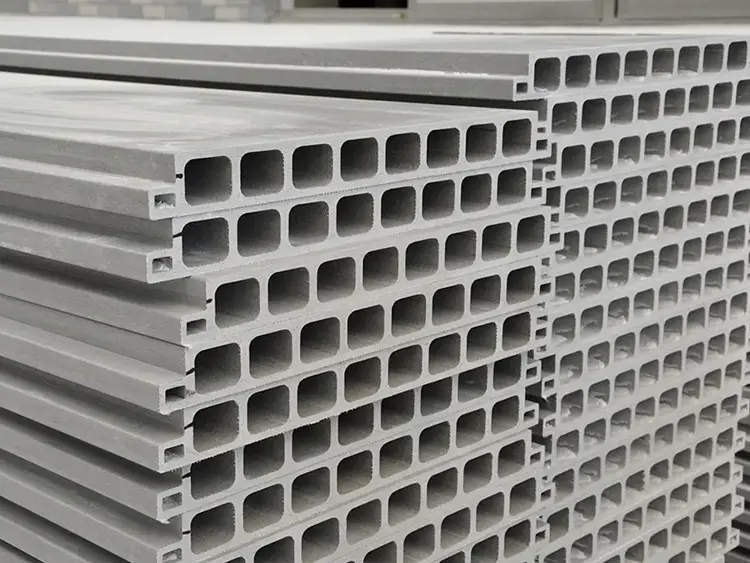

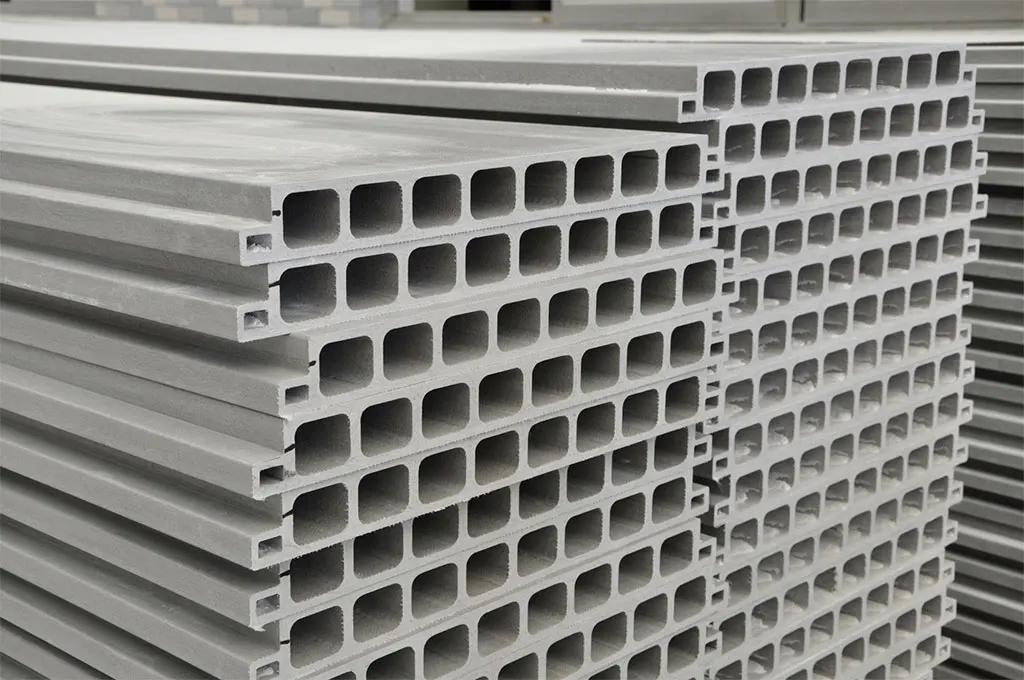

Pultrusion is the process of pulling fiberglass reinforcements such as mats and strands through a proprietary resin and heated die. The result is a specific complex profile that can be cut to any length. This process offers speed and consistency making it the best method for producing Comtecs high-volume linear fiberglass products that require constant cross sections.
Pultrusion refers to pulling plastic raw material through a preformer. This production method is particularly suitable for Comtec tubes, profiles etc. reinforced with continuous fibres, involving pulling of impregnated fibres via preformers providing the form as, simultaneously, the plastic is hardened with heat (thermoset) or cooled until solid (thermoplast).
- Open pultruded gratings:
- Thicknesses: 25mm, 32mm, 38mm, 50mm, 64mm, 76mm, 100mm
For Pultruded Grating the bar spacing is calculated for the require load specification, this is called the Open area and is stated as a percentage.
- Bar types: I Bar, T Bar, Straight Bar
- Surface types: Gritted Anti-Slip Top, Concave top, Flat Top
Resin systems
Resin systems
Type O™
Type O™ is an architectural grade polyester resin system with an intermediate level of chemical resistance, and is a good choice for commercial or light industrial applications, especially where light moisture is prevalent – it is recomended for less exposed/internal applications. Type O™ is often utilised for public infrastructure applications were it has been proven to outperform traditional timber decking products. This system is manufactured with fire retardant additives.
Type I™
Type I™ is a premium isopthalic resin system. This system provides an intermediate level of chemical resistance and is the correct choice for areas subjected to splash and spill contact with harsh chemicals. This system is an excellent general-purpose resin and is a more favourably priced alternative to the Type V™ vinyl ester system. This system has a flame spread of 25 (Approximately 15) or less. It is our most commonly specificed resin system, and is suitable for external applications.
Type V™
Type V™ is a vinyl ester resin system that provides the highest chemical resistance offered in the industry for a standard resin and has been developed for use in environments where GRP products are subject to frequent and direct contact with the harshest of chemicals including a broad range of acids and caustics. This system has a flame spread of 25 (Approximately 15) or less. This is best suited to the majority of harsh applications where smoke specific characteristics of the Type P™ system are not required.
Type P™
Type P™ is a phenolic resin system that is designed specifically for use where fire resistance, low smoke and low toxic fumes are critical. Type P™ is typically used in offshore applications and confined spaces where such criteria are an absolute necessity. This system is tested in accordance to ASTM E-84 and some products conform to US Coast Guard Approvals Level 2 and 3. This particular resin system has a flame spread rating of 5 and a smoke density rating of 5. This is a highly versatile system for harsh applications.
| Chemical Resistance | Fire Resistance | Low Smoke | Halogen Free | Temperature Resistance | |
|---|---|---|---|---|---|
| Type O™ Polyester | XXX | XXXX | — | — | XXX |
| Type I™ Isopthalic | XXXXX | XXXXX | — | — | XXXX |
| Type V™ Vinylester | XXXXX | XXXXX | — | — | XXXXX |
| Type P™ Phenolic | XXXX | XXXXX | XXXX | XXXXX | XXXXX |
| Chemical Resistance | Fire Resistance | Low Smoke | Halogen Free | Temperature Resistance | |
|---|---|---|---|---|---|
| Type O™ Polyester | XXX | XXXX | — | — | XXX |
| Type I™ Isopthalic | XXXXX | XXXXX | — | — | XXXX |
| Type V™ Vinylester | XXXXX | XXXXX | — | — | XXXXX |
| Type P™ Phenolic | XXXX | XXXXX | XXXX | XXXXX | XXXXX |
| Chemical Resistance | Fire Resistance | Low Smoke | Halogen Free | Temperature Resistance | |
|---|---|---|---|---|---|
| Type O™ Polyester | XXX | XXXX | — | — | XXX |
| Type I™ Isopthalic | XXXXX | XXXXX | — | — | XXXX |
| Type V™ Vinylester | XXXXX | XXXXX | — | — | XXXXX |
| Type P™ Phenolic | XXXX | XXXXX | XXXX | XXXXX | XXXXX |
Characteristic rating per product, X equals score out of 5.
< Scroll the table horizontally for the details >
Surfaces
Surfaces
Gritted Anti-slip
This surface is most commonly used in industrial applications. It is very hard wearing and boasts an extremely effective coefficient of friction. Unlike serrated steel, the anti-slip surface does not impact load carrying capacity.

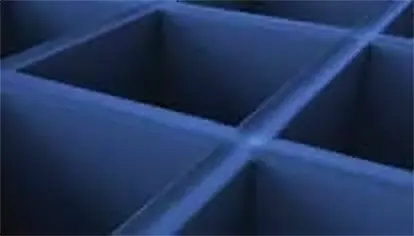

Concave
This is preferred for environments where by-products are commonly caught by serrations, and is hence very often utilised by the food industry. This surface option is also high grip, however does not have a grit applied to it.

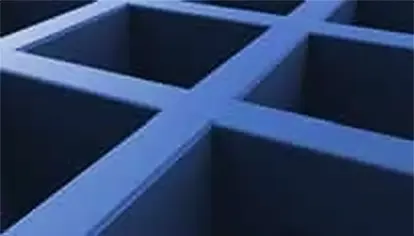

Plain
This is widely utilised for guarding and architectural features in a variety of applications. Whilst the aesthetics of the product are clean, the anti-slip properties are not as strong as the other options available.
Colours
Colours

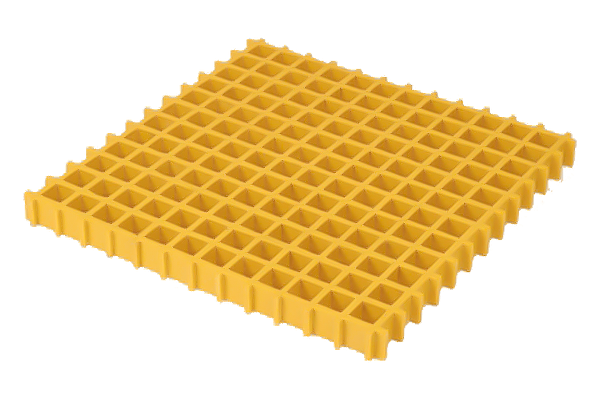

Signal Yellow

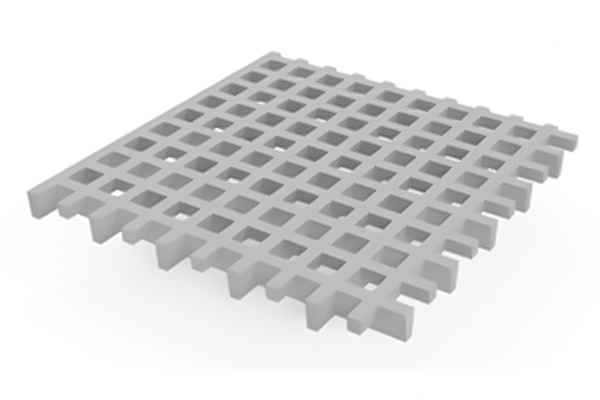

Signal Grey

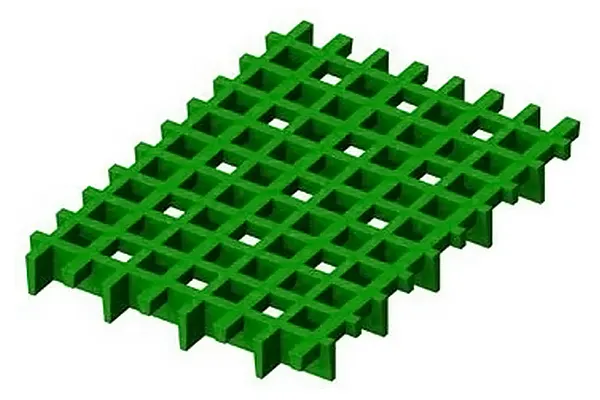

Signal Green
Sizes
Sizes
- At Comtec we stock various thicknesses of material. Stock sheet sizes include:
- 3660mm x 1220mm
- 3000mm x 1000mm
- 2000mm x 1000mm
- These can all be cut to bespoke sizes if required.
38mmx38mm mesh with 32mm*32mm open hole
| Panel Thickness | Weight kg per panel | Panel Size Available | Colour |
|---|---|---|---|
| 38mm | 38 | 2026mm x 1035mm | Grey/Green/Yellow |
| 38mm | 57 | 3017mm x 1035mm | Grey/Green/Yellow |
| 38mm | 85 | 3660mm x 1220mm | Grey/Green/Yellow |
| 25mm | 37 | 3017mm x 1035mm | Grey/Green/Yellow |
| 25mm | 25 | 2026mm x 1035mm | Grey/Green/Yellow |
| 25mm | 55 | 3660mm x 1220mm | Grey/Green/Yellow |
| Panel Thickness | Weight kg per panel | Panel Size Available | Colour |
|---|---|---|---|
| 38mm | 38 | 2026mm x 1035mm | Grey/Green/Yellow |
| 38mm | 57 | 3017mm x 1035mm | Grey/Green/Yellow |
| 38mm | 85 | 3660mm x 1220mm | Grey/Green/Yellow |
| 25mm | 37 | 3017mm x 1035mm | Grey/Green/Yellow |
| 25mm | 25 | 2026mm x 1035mm | Grey/Green/Yellow |
| 25mm | 55 | 3660mm x 1220mm | Grey/Green/Yellow |
50mmx50mm mesh with 42mm*42mm open hole
| Panel Thickness | Weight kg per panel | Panel Size Available | Colour |
|---|---|---|---|
| 50mm | 90 | 3660mm x 1220mm | Grey/Green/Yellow |
| 12mm | 22.5 | 3660mm x 1220mm | Grey/Green/Yellow |
| Panel Thickness | Weight kg per panel | Panel Size Available | Colour |
|---|---|---|---|
| 50mm | 90 | 3660mm x 1220mm | Grey/Green/Yellow |
| 12mm | 22.5 | 3660mm x 1220mm | Grey/Green/Yellow |
< Scroll the table horizontally for the details >
